1/2.3" 2.8mm 16Megapixel M12-mount 150Degree wide-angle lens for Gopro HD /Sport DV, AR1820HS lens

Name: 123quot 28mm 16Megapixel M12mount 150Degree wideangle lens for Gopro HD Sport DV AR1820HS lens
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/2.3" 2.8mm 16Megapixel M12-mount 150Degree wide-angle lens for Gopro HD /Sport DV, AR1820HS lens from china suppliers

Model Number : 123028MP 123028MPF

Place of Origin : China

MOQ : 100 pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Camera Lens : CCTV Video Lens

Optical Lens : M12 wide-angle Board Lens

TV Lens : Gopro 3/3+/4 lens

Material : 6G1M+IR

Brand Name : CCOM LENS

Contact Now

1/2.3" 2.8mm 16Megapixel M12-mount 150degree wide-angle lens for Gopro 3/3+ Gopro 4 / Sport DV, AR1820HS lens

Model 123028MPF
IMAGE FORMAT 1/2.3"
MAX IMAGE CIRCLE Φ8.0mm
FOCAL LENGTH 2.8mm
FOV (D*H*V) 150°*128°*93°
APERTURE F2.5
RESOLUTION 16MP
DISTORTION <-62%
MOUNT M12XP0.5
IRIS Fixed
B.F.L. 4.78mm
F.B.L. 4.28mm (COVER GLASS 0.5mm)
T.T.L. 24mm
R.I. >62%
C.R.A. <19°
CONSTRUCTION 6G1M+IR
DIMENSION Φ17.50*17.94mm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

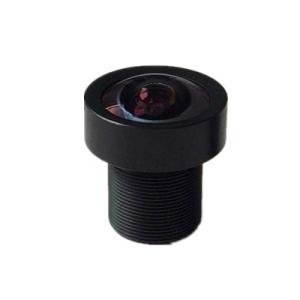

1/2.3" 2.8mm 16Megapixel M12-mount 150Degree wide-angle lens for Gopro HD /Sport DV, AR1820HS lens Images
